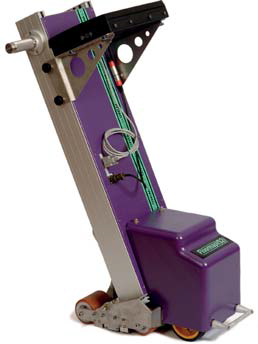

The Floormap VS2i, a computerised magnetic flux leakage system designed to detect, size and map underfloor corrosion on above ground storage tanks. The Floormap VS2i magnetic flux leakage (MFL) floor scanner comes with up-graded magnets to improve corrosion detectability and sizing on thicker materials, faster data capture with a custom designed micro controller and all new software. The Floormap VS2i contains significant improvements in terms of defect positioning, electronic data processing and software manipulation.
As floormap v2si moves forward, powerful permanent earth magnets which maintained at the bottom of the scanner, induces localized magnetic saturation at the tank floor plates, as the scanner moves over the area of corrosion, an array of 32 hall effect sensors mounted between the two magnet poles sense changes in the magnetic field, which then converted into electrical signals, the electrical signals is then processed before being sent to the on-board computer, once the scan has been saved, the location and severity of the corrosion is displayed on the color coded map of the plates.
