Scorpion B-Scan

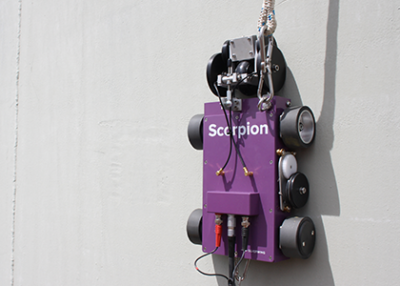

The Scorpion B-scan is a rugged remote access ultrasonic crawler designed to allow cost effective A and B-scan imaging on above ground ferro-magnetic structures such as oil storage tanks without the need for costly scaffolding or rope access.

The Scorpion remote access crawler uses a unique “Dry Coupled” ultrasonic wheel probe eliminating the need for traditional couplant. This allows the crawler to travel vertically, horizontally or even inverted whilst still fully functional.

The Scorpion B-scan system continuously records thickness measurements received from the dry coupled TWP12 dual wheel probe and combines the data with the encoder information.

Characteristic

Battery Operated
Standard Flaw Detector Controls
Dry Coulped Ultrasonic Wheel Probe 5 Mhz dual / twin compression transducer
25 mm/sec speed
30 meter cable length
Near surface resolution down to 2.5 mm
can drive over 12 mm weld
wall thickness range between 5 mm & 100 mm
can inspect over non conductive coating less than 1 mm thickness

Reporting

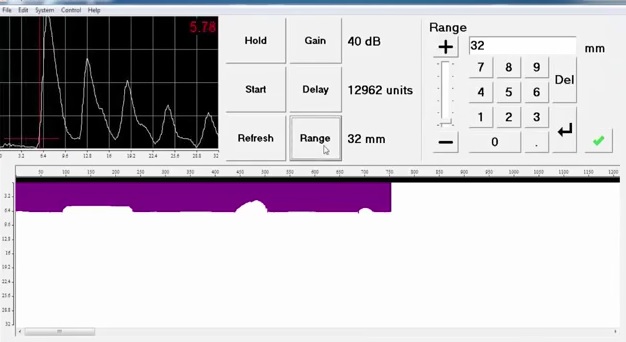

The recorded thickness information is presented in the software as an A-scan trace, a digital thickness measurement and a B-scan profile. The software has standard flaw detector controls for the A-scan set-up.
